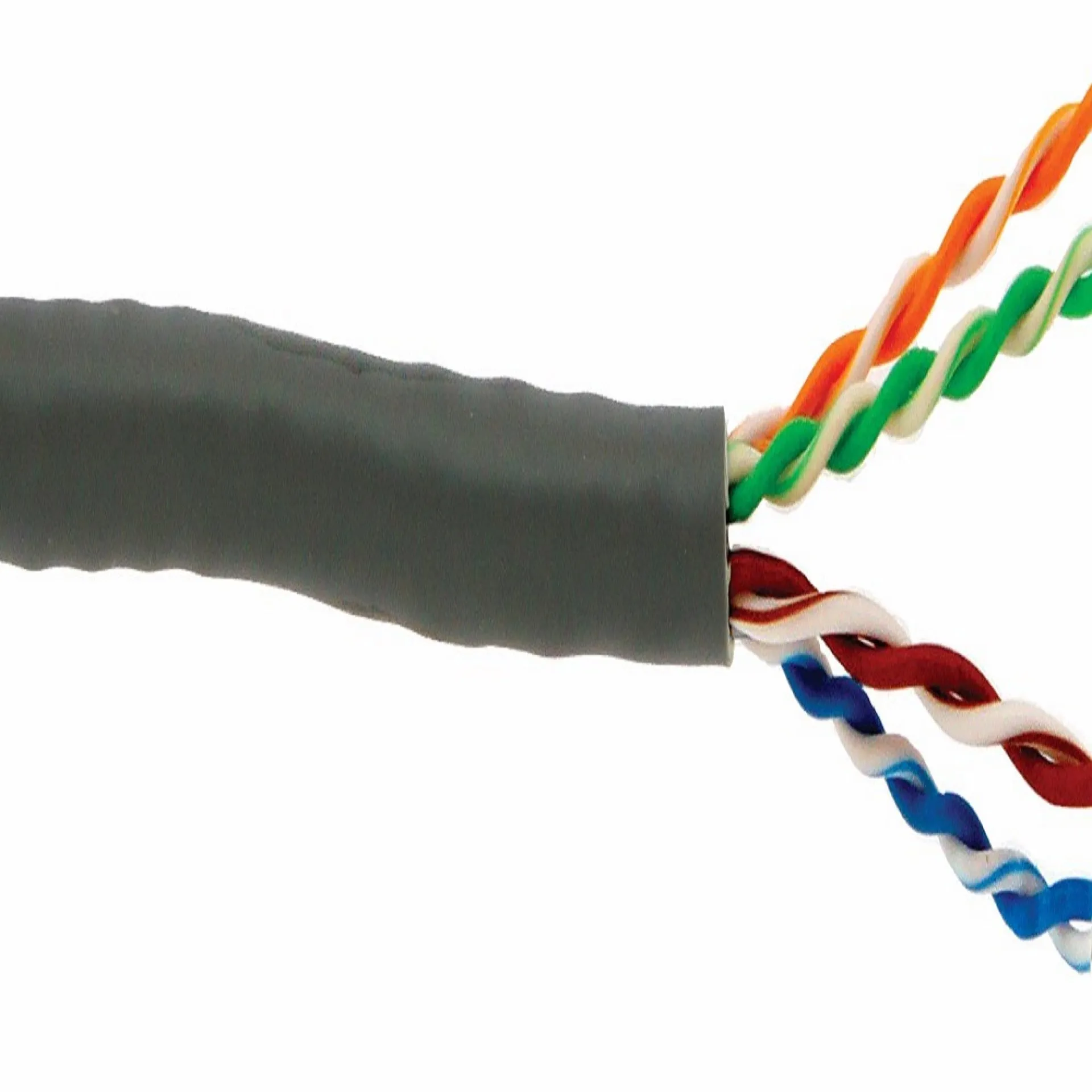

D-Link Cat6 UTP 24 AWG Enhanced PVC Solid Cable - 305m/Roll - Grey Colour

Product Information

TECHNICAL DETAILS

• Mutual Capacitance: 5.6nF/100m nominal
• Characteristic Impedance: 100Ω±15%
• Nominal Velocity of Propagation: 69%
• Conductor Resistance: < 9.38Ω/100m
• Resistance Unbalance: 5% Max
• Capacitance Unbalance: 330pF/100m
• Delay Skew: < 45nS
• Bending Radius: < 4 X Cable Diameter at –20°C ± 1°C
• Pulling Force: 11.5Kg
• Temperature Range: -20° to +70°C

SPECIFICATIONS

• 4 Pairs Unshielded Twisted Pair (UTP) Cable
• Conductor Metal: Solid Bare Copper
• Color Code: Gray
• Conductor Diameter : 0.520mm Nominal, 24 AWG
• Insulation Diameter: 0.940mm Nominal, Insulation Material: HD-PE
• Jacket Material: PVC
• Cable Diameter: 5.7mm
• PE Central Cross separator
