Product Information
TECHNICAL DETAILS
- Mutual Capacitance: 5.6nF/100m nominal
- Characteristic Impedance: 100Ω±15%
- Nominal Velocity of Propagation: 69%
- Conductor Resistance: < 9.38Ω/100m
- Resistance Unbalance: 5% Max
- Capacitance Unbalance: 330pF/100m
- Delay Skew: < 45nS
- Bending Radius: < 4 X Cable Diameter at –20°C ± 1°C
- Pulling Force: 11.5Kg
- Temperature Range: -20° to +70°C
SPECIFICATIONS

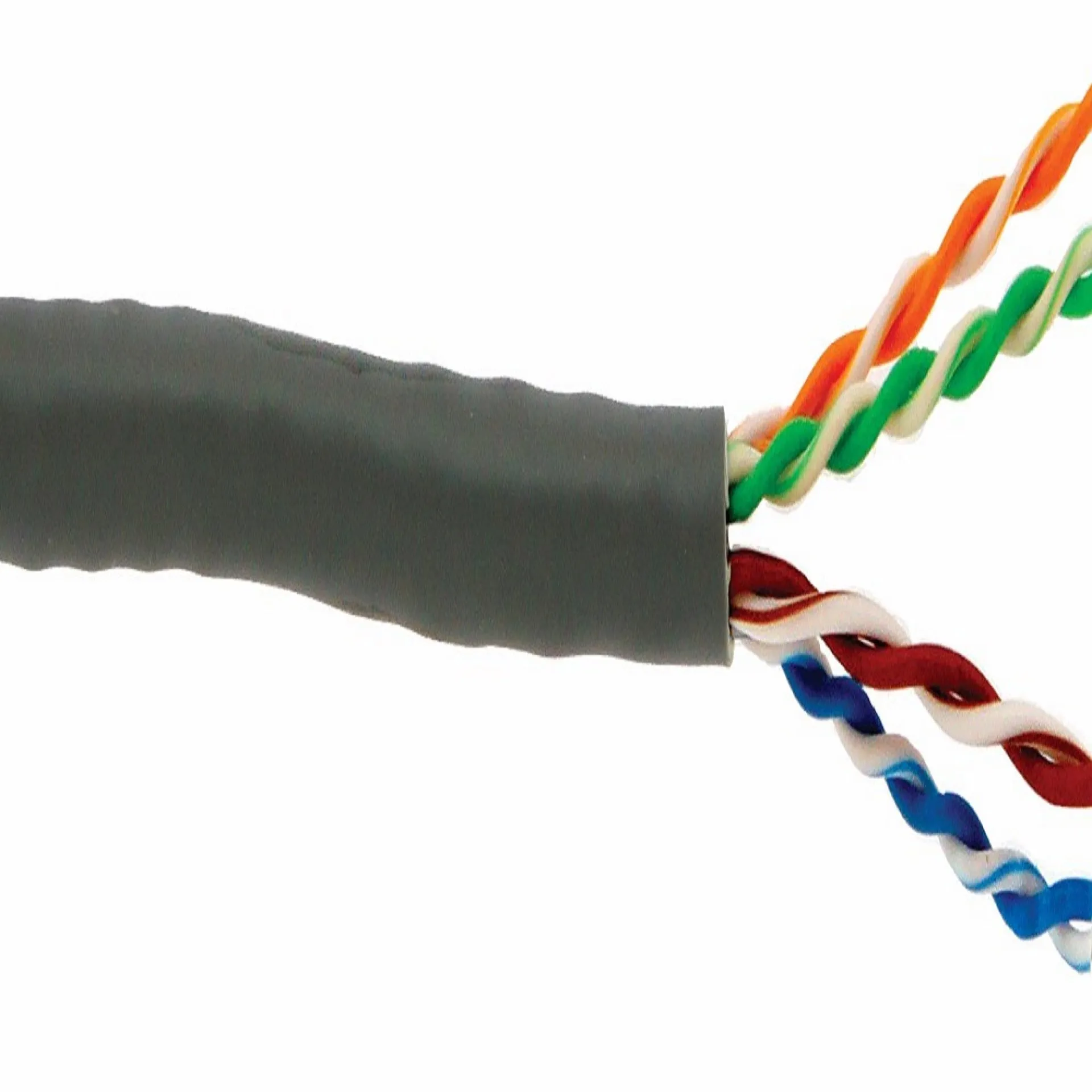

- 4 Pairs Unshielded Twisted Pair (UTP) Cable
- Conductor Metal: Solid Bare Copper
- Color Code: Gray
- Conductor Diameter : 0.520mm Nominal, 24 AWG
- Insulation Diameter: 0.940mm Nominal, Insulation Material: HD-PE
- Jacket Material: PVC
- Cable Diameter: 5.7mm
- PE Central Cross separator
| BRANDS | D Link |
| Shipping Cost |
|
| Delivery Time | Ready to ship in 1 Business Day |
| Shop Location | Hiteen Street, Rawdat Al Khail St, Doha 000000, Qatar |
