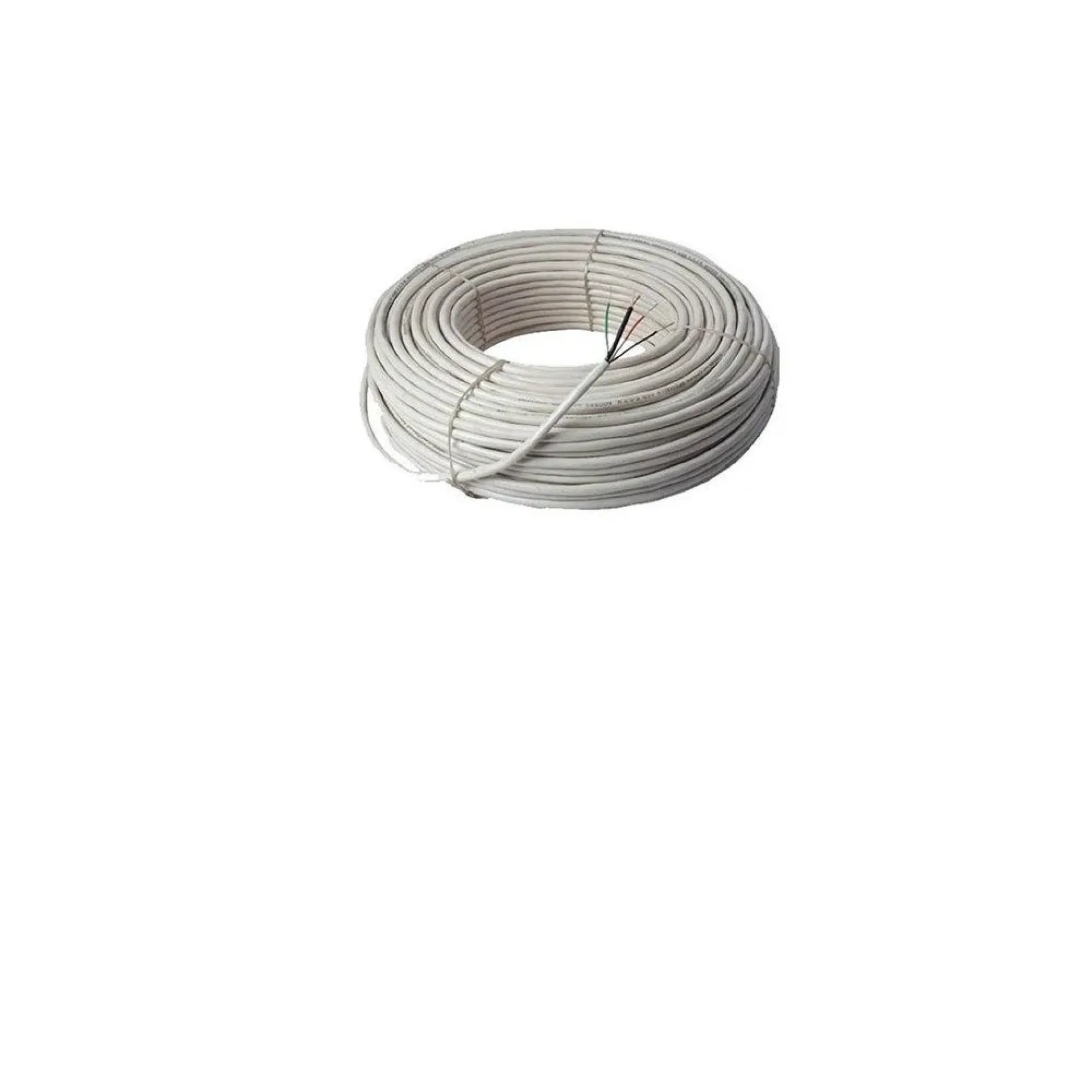

D-Link DCC-CCU-180 - CCTV 3+1 100 Percentage Copper Gold Cable - DCC-CCU-100

Outer Sheath

• Color & Material: FR PVC White (IEC 60332-1)
• Cable Diameter (Oval): 5.8 ± 0.4 mm
• Jacket Thickness: 0.75 ± 0.2 mm

● Coaxial Cable

• Inner Conductor: Copper
• Number of Conductors: 1.00
• Dielectric: Solid PE
• Color: Natural
• Diameter: 0.60 ± 0.03 mm
• Thickness: 1.50 ± 0.2 mm
• Shield: 6 mm Copper Color Aluminum Mylar Tape
• Shield Braiding: Copper Braiding
• Braid Wire Diameter: 0.11 ± 0.02 mm
• Number of Braiding Wires: 48
• Coax Jacket: PVC Type ST1
• Color: Black
• Thickness: 0.45 ± 0.02 mm

● Insulated Cores (Type A)

• Core Colors: Red, Yellow, Grey
• Conductor:
• Number of Strands: 16.00
• Strand Diameter: 0.1 ± 0.02 mm
• Insulation: PVC Type A
• Thickness (Average): 0.50 ± 0.02 mm
• Diameter (Average): 1.45 ± 0.2 mm
