| Specification | Details |
|---|---|

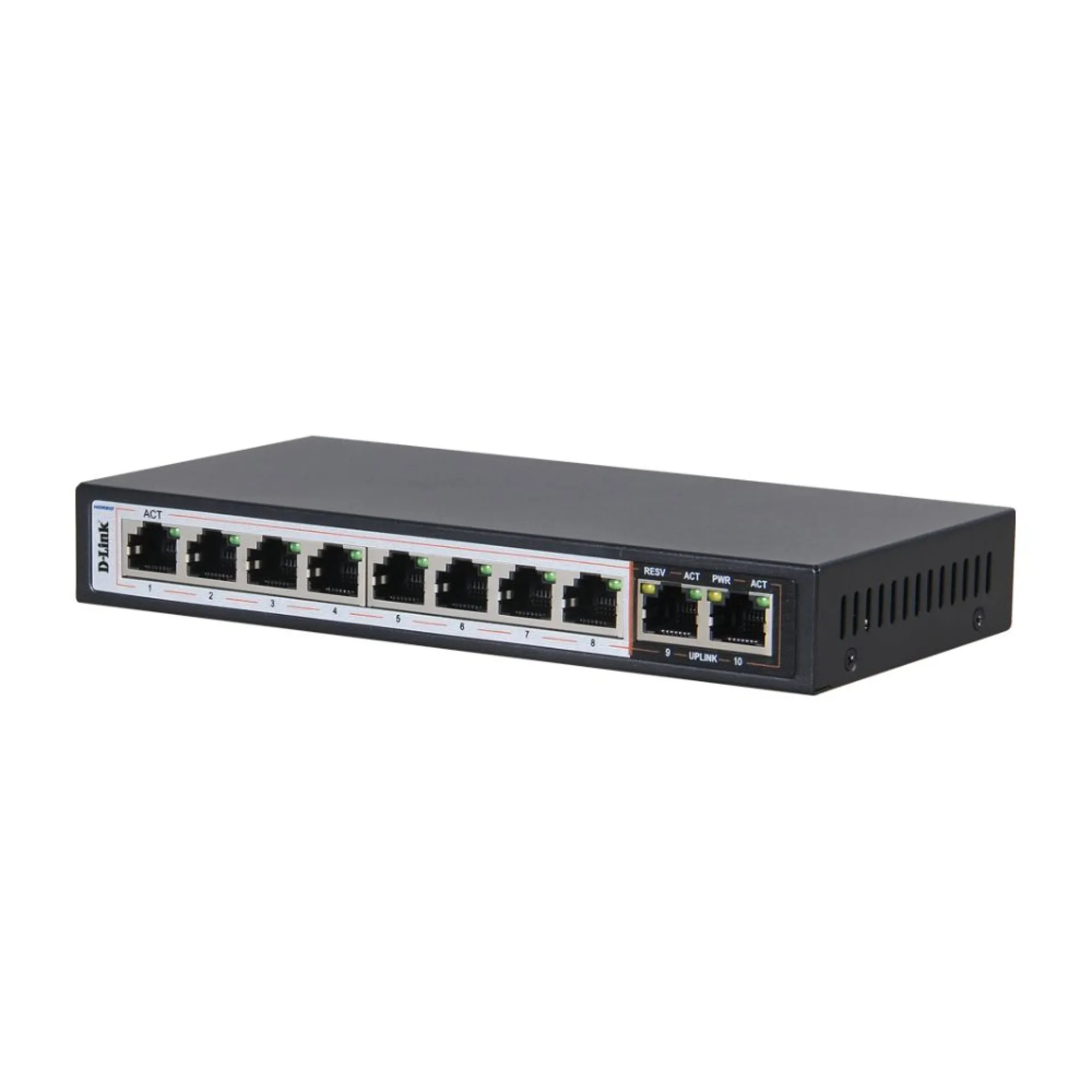

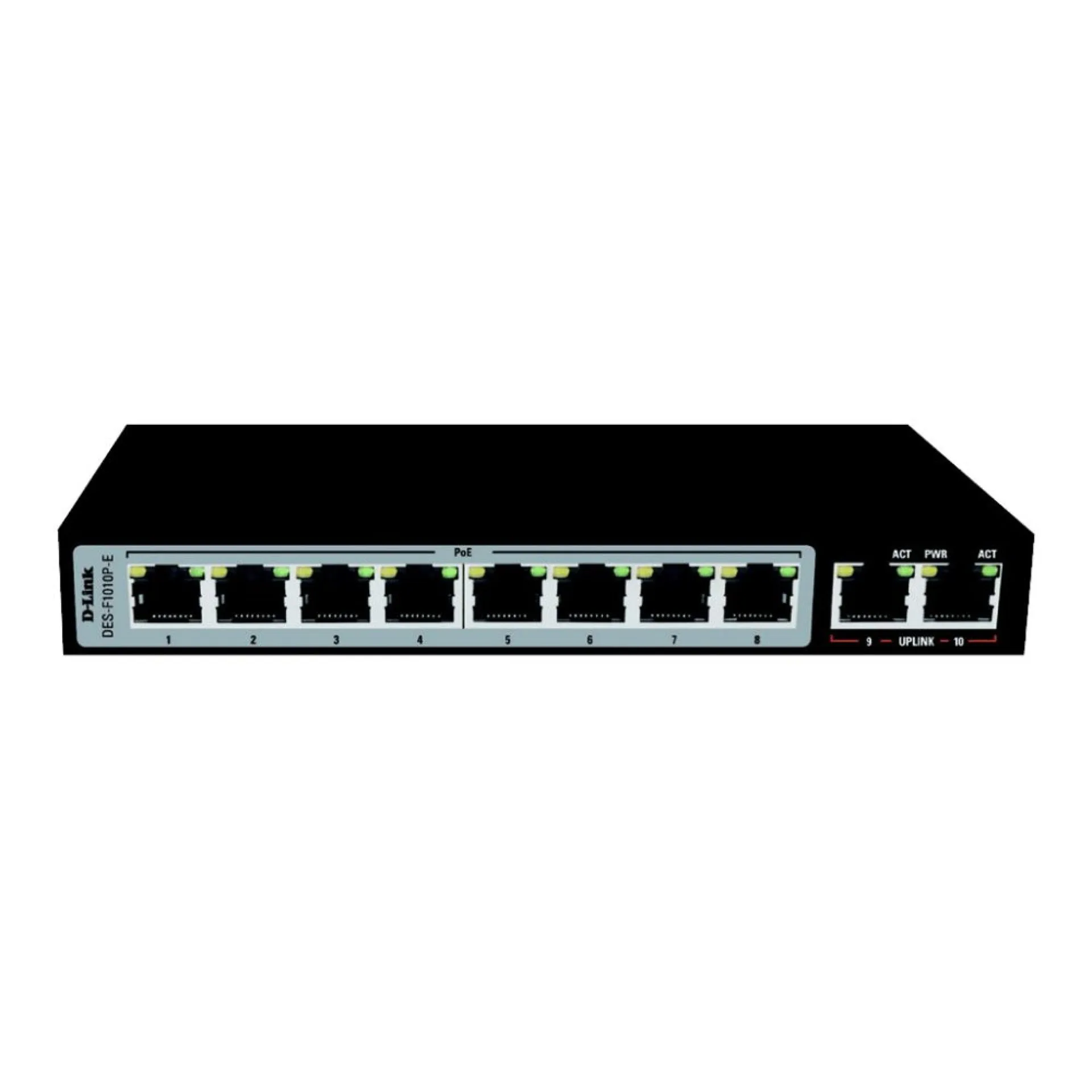

| Product Description | 10-Port 10/100 Long Range PoE+ Surveillance Switch |
| Part Number | DES-F1010P-E |
| Switch Working Mode | Selectable via DIP switch |
| Network Interface | 10BASE-T / 100BASE-TX Ethernet RJ-45 ports |
| Ports | 8 × 10/100 Mbps PoE RJ-45 ports (Port 1–8), 2 × 10/100 Mbps Uplink RJ-45 ports (Port 9–10) |
| Transmission Rate | 10/100 Mbps |
| Auto Negotiation | Supports MDI/MDIX auto-flip and auto-negotiation |
| Protocols & Standards | IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), ANSI/IEEE 802.3 NWay, IEEE 802.3x Flow Control, IEEE 802.3af/at |
| Switching Capacity | 2 Gbps |
| Forwarding Rate | 10 Mbps: 14,800 pps, 100 Mbps: 148,800 pps |
| PoE Standard | IEEE 802.3af / IEEE 802.3at (PoE+) |
| PoE Budget | 96 W |
| LED Indicators | Power, LINK/ACT, PoE |
| Power Supply | External power adapter 100–240V ~ 50/60Hz, 52V / 1.85A |
| Lightning Protection | 6 kV |
| Dimensions (L × W × H) | 184 × 94 × 27 mm |
| Weight | 0.95 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Application | Designed for IP cameras and surveillance networks |
| BRANDS | D Link |
| Total Ports | 10 port |
| Port Speed | 10G |
| Shipping Cost |
|
| Delivery Time | Ready to ship in 1 Business Day |
| Product Location | Qatar |
